Ventilation Outlet

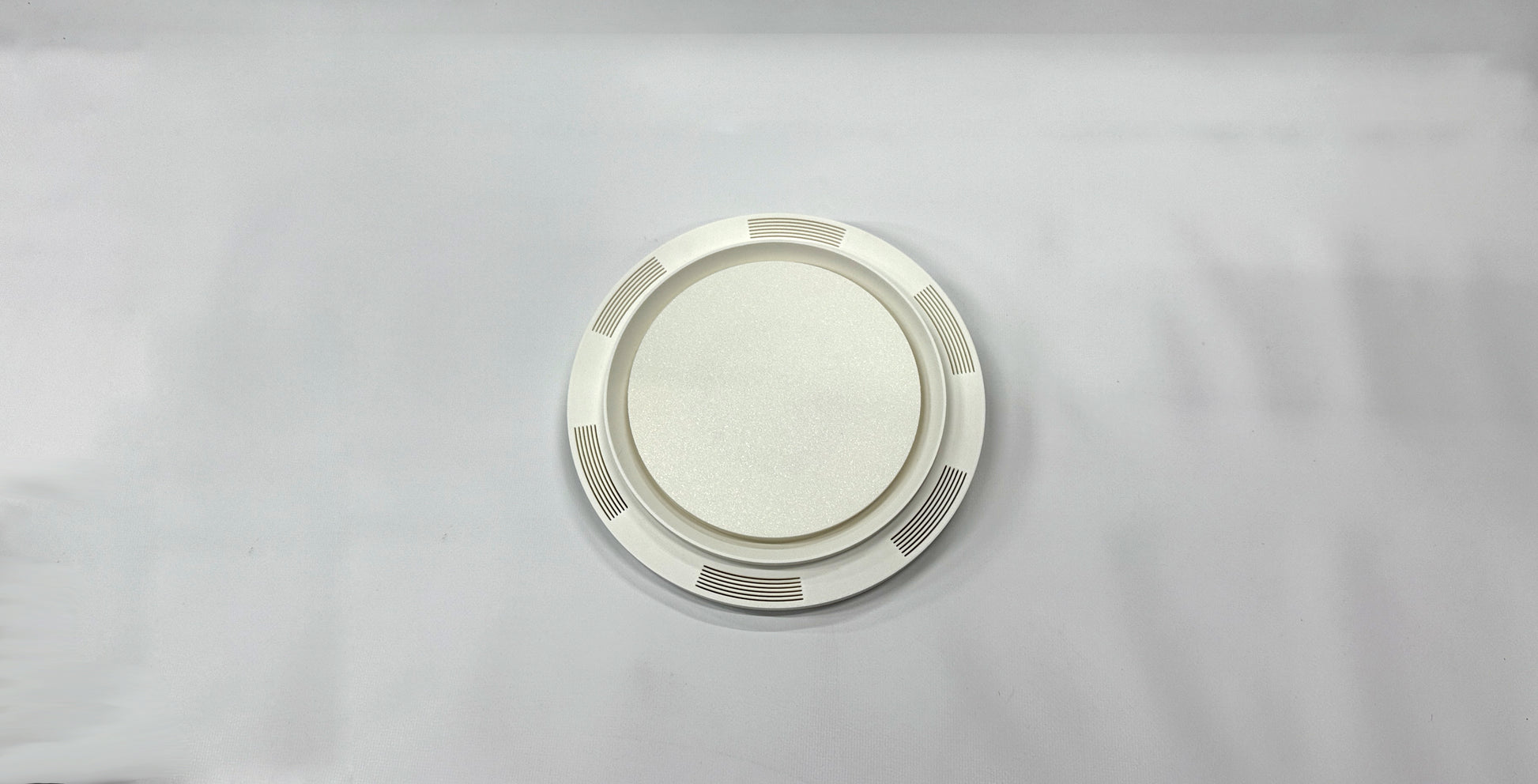

Utility Vent – 2-Piece, Dual-Size Design - Low-profile, heat-resistant ventilation outlet for 125 mm and 150 mm ducts – clean look, easy install, and built for lasting indoor use.

Part of the Printhead Utility series, this two-piece ventilation outlet is designed for easy integration into bathrooms, workshops, and other rooms needing clean, low-profile airflow. Built from durable material rated up to 50 °C, and compatible with standard duct sizes for 125 mm and 150 mm exhaust systems.

🔹 Dual-Diameter Fit – Supports both 125 mm and 150 mm ducting (adapters not included)

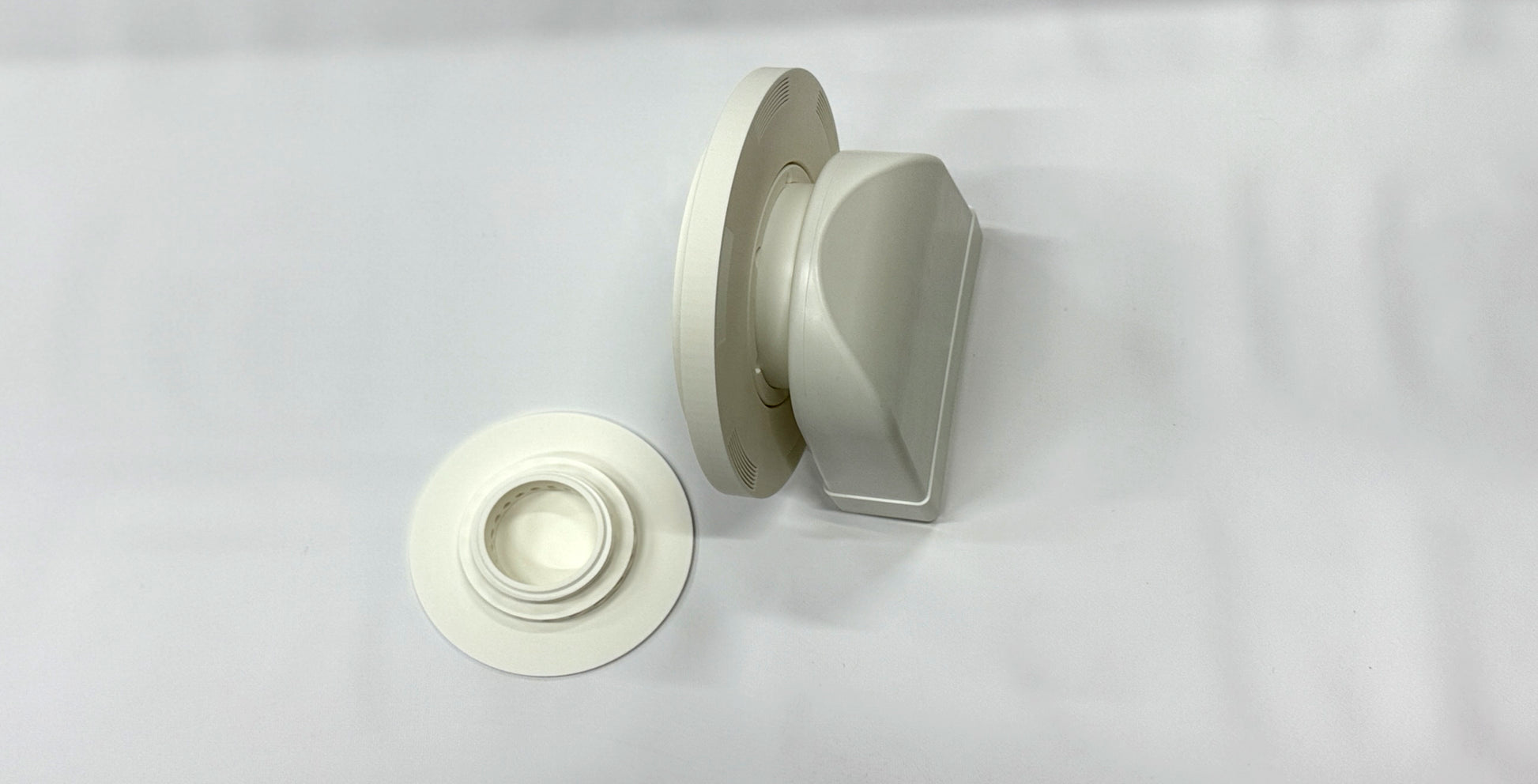

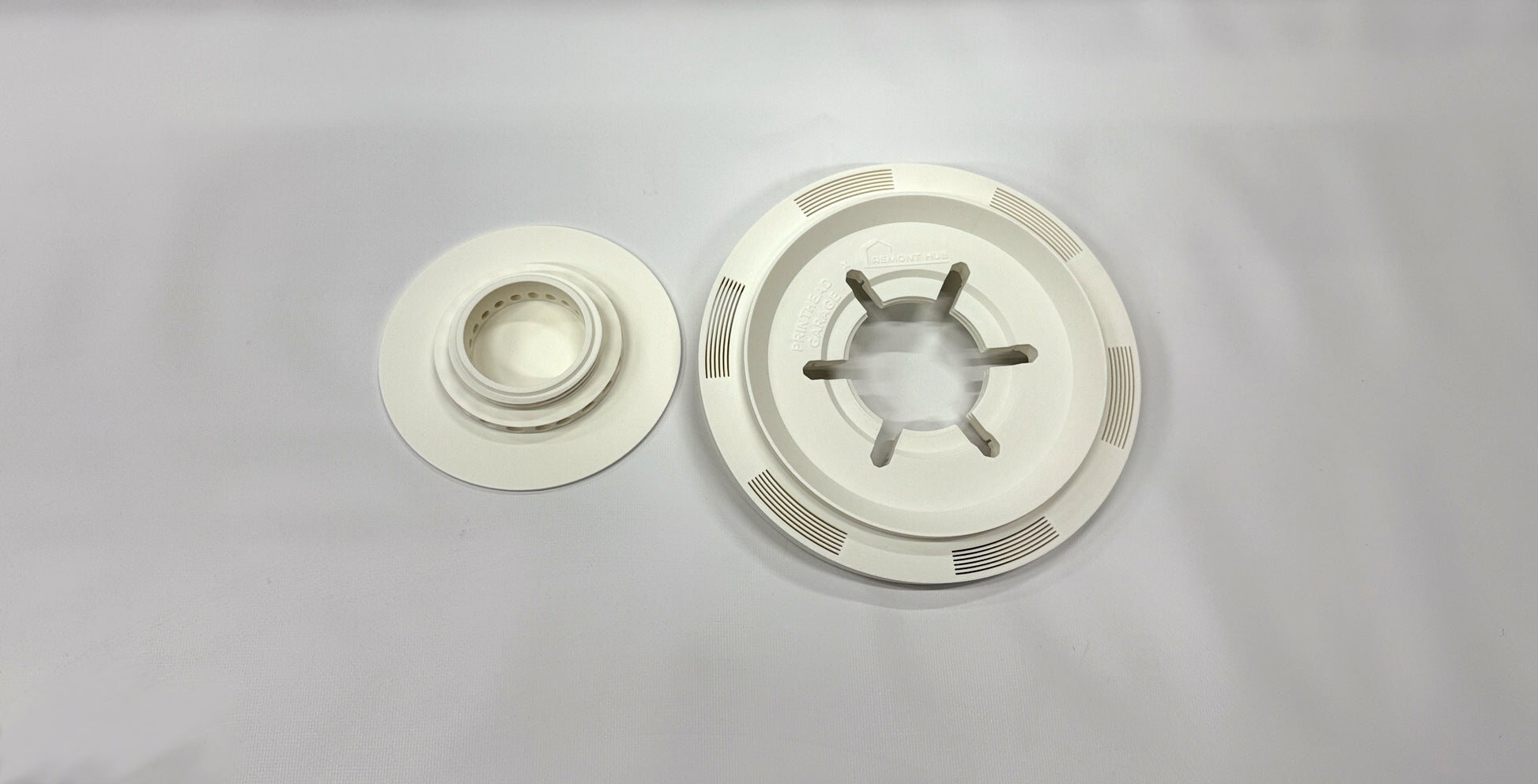

🔹 2-Piece Construction – Top plate and base ring screw together securely

🔹 Paintable Surface – Can be painted to match ceiling or wall color

🔹 Screw Mount Ring – Large outer flange allows mounting to OSB, drywall or gypsum

🔹 Clean Look – Low-profile, removable cover in textured or smooth finish

🔹 Durable Material – Heat-resistant up to 50 °C, perfect for indoor exhaust use

📐 Dimensions:

• Outer diameter: 260 mm

• Cutout diameter (for mounting surface): 210 mm

• Cutout depth: 13 mm

• Color: White (standard)

🛠️ Install Note:

The base ring is mounted first to the backside (e.g. OSB or drywall), and the cover is then screwed on. Designed for flush ceiling installations with concealed hardware and clean airflow zones.

📦 Included:

✔ 2-piece vent body (mount ring + visible cover)

🔧 3D Print Disclosure:

Minor layer lines or small texture variations are possible due to the 3D printing process.

💬 Want a different finish, special duct compatibility, or custom color?

Drop us a message at printhead@outlook.de – we’re happy to help mod it to your needs.
